HBGB 350g/Sqm Heavy Geotextile Welded Gabion Mesh Noise Barrier Wall

Name: HBGB 350gSqm Heavy Geotextile Welded Gabion Mesh Noise Barrier Wall
Brand: HBGB
Price: 1 USD

Wholesale HBGB 350g/Sqm Heavy Geotextile Welded Gabion Mesh Noise Barrier Wall from china suppliers

Brand Name : HBGB

Model Number : GB-001

Certification : ISO 9001

Place of Origin : China

MOQ : 50sets

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000 sets per day

Delivery Time : 10-20 days

Packaging Details : bulk or in bundle, or on pallet

Product name : hesco barrier

Material : iron wire and geotextile cloth

Surface treatment : hot dipped galvanized

Hole shape : square

Wire diameter : 4.0mm, 5.0mm

Hole size : 75x75mm and etc

Size : 3x1x1 m, 6x1x1 m, 12x1x1 m

Packing : on pallet

Application : Hesco Defense Wall

Sample : available

Contact Now

Military Welded Hesco Barrier Gabion Fence covered with geotextile cloth

Hesco defensive barrier description:

Hesco Barrier are also known as modern metal meshes for flood protection and military fortifications.Composed of a collapsible wire mesh container,and heavy geotextile, it is used as a temporary or semi-permanent barrier or bastion to block an explosion or small weapon attack.

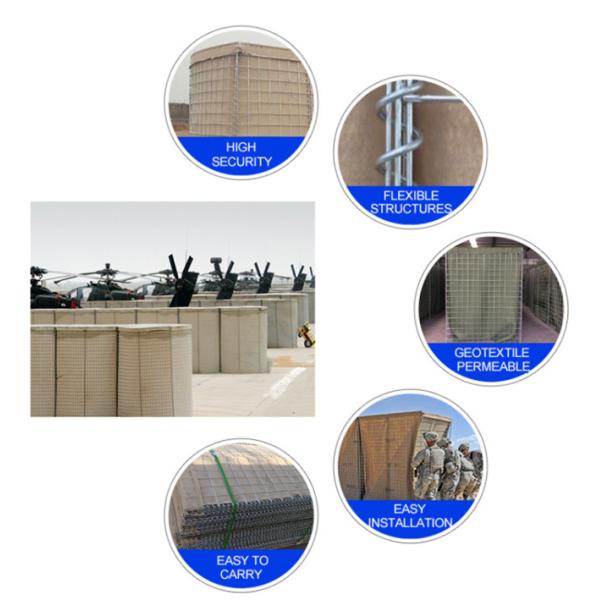

Hesco barrier features:

High security

Flexible structures

Geotextile permeable

Easy installation

Easy to carry

HBGB 350g/Sqm Heavy Geotextile Welded Gabion Mesh Noise Barrier Wall

Hesco barrier raw material specifications:

Wire diameter	3.85mm,4mm,5mm etc
Mesh Size	75mmx75mm etc
Spring wire diameter	3mm,4mm,5mm etc
Panel Finish	Hot dipped galvanized or Galfan coated
Geotextile	Heavy duty non-woven polypropylene, color can be white, beige-sand, olive green, etc
Packing Wrapped with shrink film or packed in pallet

Technical Specification for Geotextile Fabric
Color	Beige sand,Olive green,Grey
Mass(g/sqm)	250,300,350
Tensile strength	16kN
Tear Strength	0.42kN
CBR Puncture	3.1kN
UV strength retention ASTM D4355	50% at 500hours (5 years use life in common environment)
	70% at 500hours (10 years use life in common environment)

Hesco Barrier Specifications:

Model	Height(M)	Width(M)	Length(M)	Number of cells
ST-1(Mil 1)	1.37	1.06	10	5+4=9 cells
ST-2(Mil 2)	0.61	0.61	1.21	2 cells
ST-3(Mil 3)	1.0	1.0	10	5+5=10 cells
ST-4(Mil 4)	1.0	1.5	10	5+5=10 cells
ST-5(Mil 5)	0.61	0.61	3.05	5 cells
ST-6(Mil 6)	1.68	0.61	3.05	5 cells
ST-7(Mil 7)	2.21	2.13	27.74	5+4+4=13 cells
ST-8(Mil 8)	1.37	1.22	10	4+5=9 cells
ST-9(Mil 9)	1.0	0.76	9.14	6+6=12 cells
ST-10(Mil 10)	2.12	1.52	30.5	5+5+5+5=20 cells

hesco barrier pictures:

HBGB 350g/Sqm Heavy Geotextile Welded Gabion Mesh Noise Barrier Wall
