12*15cm 5 Twist Metal Gabion Mesh Basket Galfan Fine Mesh Metals Gabion Baskets

Name: 1215cm 5 Twist Metal Gabion Mesh Basket Galfan Fine Mesh Metals Gabion Baskets
Brand: HBGB
Price: 1 USD

Wholesale 12*15cm 5 Twist Metal Gabion Mesh Basket Galfan Fine Mesh Metals Gabion Baskets from china suppliers

Brand Name : HBGB

Model Number : GB-002

Certification : ISO 9001

Place of Origin : China

MOQ : 100PCS

Price : negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000 pcs per day

Delivery Time : 10-25days

Packaging Details : compacted before packaging, in bundle

Product name : Gabion Mesh Basket

Material : Q195 wire

Surface treatment : hot dipped galvanized, PE coated, galfan

Zinc coating : more than 270g/m2

Hole shape : hexagonal

Aperture : 6*8cm, 8*10cm, 10*12cm, 12*15cm

Net wire : popular 2.7mm

Tie wire : 2.2 mm

selvage wire : 3.4 mm

Usage : protect and support seawall, slope, road, bridge, reservoirs

Contact Now

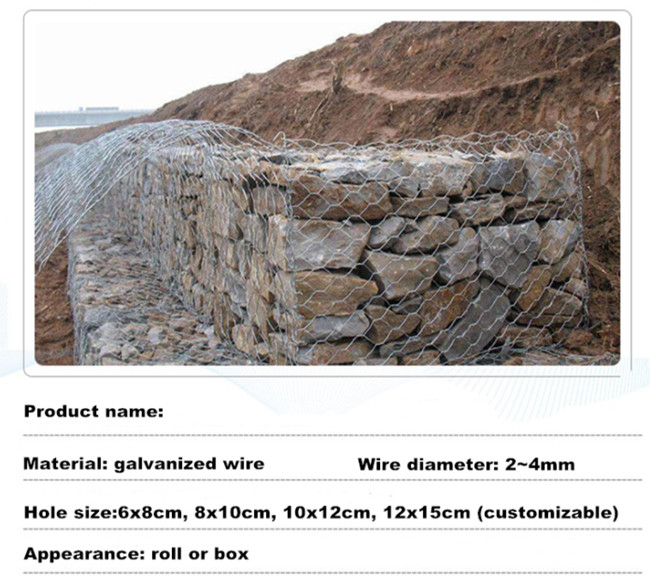

Metal gabion basket mesh filled with stone or rock for river wall

12*15cm 5 Twist Metal Gabion Mesh Basket Galfan Fine Mesh Metals Gabion Baskets

Gabion Mesh Basket Introduction:

Gabion basket is also called gabion box, gabion wall, gabion cage, hexagonal gabion, gabion retaining wall and so on. It is a large cage made by hexagonal wire netting, it can be filled by stones, the wire material is high quality galvanized carbon steel, it is strong enough to protect road, river wall or forward operating bases.

Gabion length could be adjusted by add diaphragms each meter.

Gabion Mesh Basket Raw Material:

Product Name	Gabion
Hole Type	Hexagonal
Production process	Three twist / Five twist
Material	GI wire,PVC coated wire,galfan wire
Wire Diameter	2.0mm-4.0mm
Hole Size	60×80mm,80×100mm,100×120mm,120×150mm
Gabion Size	2m×1m×0.5m,2m×1m×1m,3m×1m×0.5m,3m×1m×1m 4m×1m×0.5m,4m×1m×1m,Other sizes can be customized.

Gabion Mesh Basket Usage:

It is used for the scour protection of rivers, dikes and seawalls, as well as cage for the closure of reservoirs and rivers. The most serious disaster of the river is that the water scours the Bank of the river and causes the flood, which leads to a lot of loss of life and property and a lot of soil erosion. Therefore, when dealing with the above problems, the application of the grid ecological grid structure becomes one of the best solutions, which can make the river bed and bank permanent protection.

Gabion Mesh Basket Specifications:

Mesh Size	Galvanized Gabion( Dia.mm)	PVC Gabion (Inside Dia/Outside Dia.mm)	Max Wide Cut
60x80mm	Φ2.0-2.8	Φ2.0/3.0-2.8/3.8	4300
80x100mm	Φ2.2-3.2	Φ2.2/3.2-3.0/4.0	4300
80x120mm	Φ2.2-3.2	Φ2.2/3.2-3.0/4.0	4300
100x120mm	Φ2.4-3.5	Φ2.4/3.4-3.2/4.2	4300
100x150mm	Φ2.4-3.5	Φ2.4/3.4-3.2/4.2	4300
120x150mm	Φ2.7-4.0	Φ2.7/3.7-3.5/4.5	4300

Gabion Baskets

River Mattresses

1×1x1 - 1m³

2×1x1 - 2m³

3×1x1 - 3m³

4×1x1 - 4m³

1×1x0.5 - 0.5m³

2×1x0.5 - 1m³

3×1x0.5 - 1.5m³

4×1x0.5 - 2m³

6×2x0.5 - 6m³

1.5×1x1 - 1.5m³

2×0.5×0.5 - 0.5m³

4×0.5×0.5 - 1m³

2×1x0.3 - 0.6m³
3×1x0.3 - 0.9m³
4×1x0.3 - 1.2m³
6×2x0.17 - 2.04m³
6×2x0.23 - 2.76m³
6×2x0.30 - 3.60m³

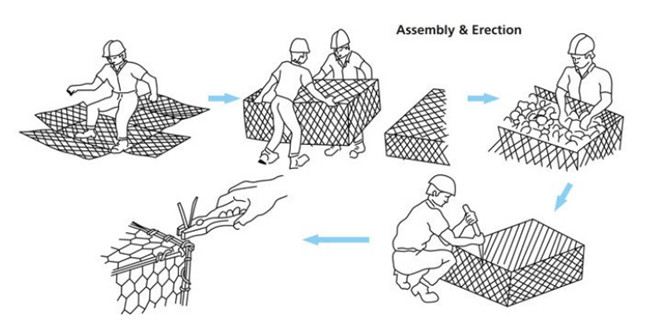

Gabion mesh basket installation:

12*15cm 5 Twist Metal Gabion Mesh Basket Galfan Fine Mesh Metals Gabion Baskets

Packing & loading pictures:

Application:

12*15cm 5 Twist Metal Gabion Mesh Basket Galfan Fine Mesh Metals Gabion Baskets
