Galvanized Heavily Zinc Coated Gabion Box Galfan 4m

Product Categories
Hebei Gabion Hardware and Mesh Co.,ltd
Contact Now

Galvanized Heavily Zinc Coated Gabion Box Galfan 4m

  • 1
  • 2

Brand Name : HBGB

Model Number : GB-003

Certification : ISO 9001

Place of Origin : China

MOQ : 100PCS

Price : negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000 pcs per day

Delivery Time : 10-25days

Packaging Details : compacted before packaging, in bundle

Product name : Galvanized Gabion Box

Material : GI wire,PVC coated wire,galfan wire

Hole shape : hexagonal

Hole size : 6 x 8 cm, 8 x 10 cm

Net wire diameter : 2.0 - 3.0 mm

Tie Wire : 1.8, 2.0, 2.2 mm

Selvage wire : 2.4, 2.7, 3.0, 3.4, 3.9mm

Box size : 2x1x0.5m, 2x1x1m, 3x1x0.5m, 4x1x1m

Usage : Flood Control Retaining Wall

Sample : provide

Contact Now

2.7 mm net steel wire heavily zinc coated galvanized gabion box

Galvanized Gabion Box ​ Introduction:

Gabion box are wire mesh boxes, containers or baskets filled with rock to prevent soil erosion and to retain/contain soil particles. Flat Gabions, called River or es, are widely used in river courses where soil erosion is a problem over a large flat or sloped area in need of protection against soil loss or scour. They are used mostly in the civil engineering industry, especially in the construction of roadway drainage structures. Recently however, due to the environmental benefits associated with gabions, they are being used in many various applications and industries.

Galvanized Gabion Box ​Raw Material:

Product Name
Gabion box, gabion cage, gabion basket
Hole Type
Hexagonal
Production process
Three twist / Five twist
Material
GI wire,PVC coated wire,galfan wire
Wire Diameter
2.0mm-4.0mm
Hole Size
60×80mm,80×100mm,100×120mm,120×150mm

Galvanized Gabion Box Characteristics:

1. Economical, cheaper

2. Simple installation.No special technology needed.

3. Weather proof under natural destruction, corrosion resistance.

4. Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment.

5. Good permeation can prevent the damage by hydrostatic.

6. Less transport freight . It can be folded together for transportation and further installation.

7. No collapse even under big scope of deforming.

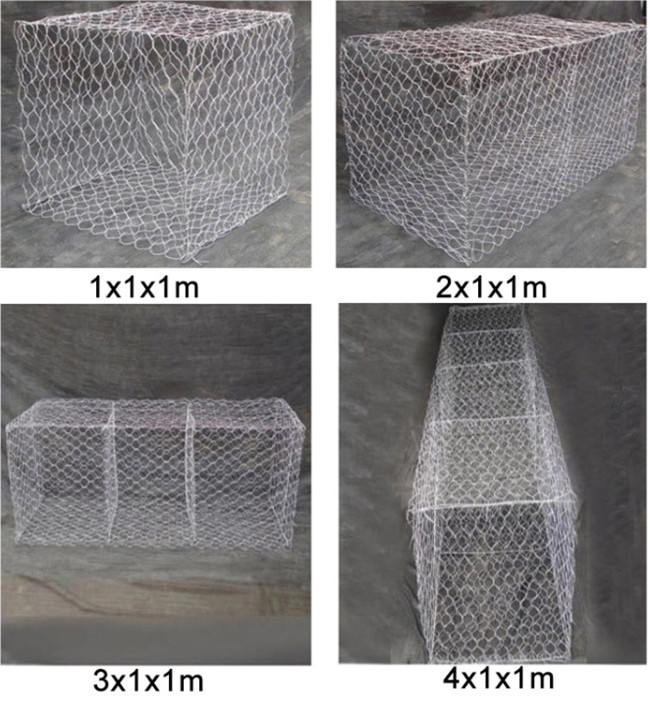

Galvanized Gabion Box Specifications:

Specification Of Gabion box

Gabion size

(m)

 Wire diameter Mesh opening Surface treatment

Mesh wire

(mm)

Selvage wire

(mm)

Tie wire

(mm)
2×1×0.5 2.0
2.2
2.4
2.7
3.0		 2.4
2.7
3.0
3.4
3.9		 1.8
2.0
2.2		 60 x 80mm
80 x 100mm
80 x 120mm
100 x 120mm
120 x 150mm		 Galvanized
Galfan
PVC coated
PE coated
2×1×1.0
3×1×0.5
3×1×1.0
4×1×1.0
6×1×1.0
2×1×0.3(Mattress)
3×1×0.3(Mattress)
All sizes can customized according to your request

Galvanized Heavily Zinc Coated Gabion Box Galfan 4m

Packing & loading pictures:

Galvanized Heavily Zinc Coated Gabion Box Galfan 4m
