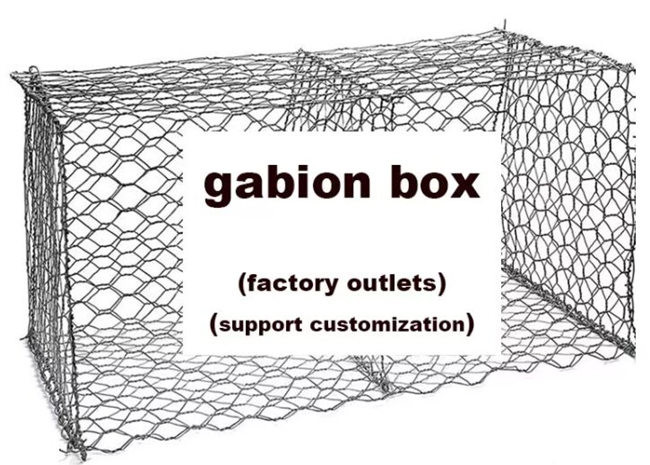

2.7mm Net Wire Gabion Stone Box Hexagonal Weaving Pvc Coated Galvanized

Name: 27mm Net Wire Gabion Stone Box Hexagonal Weaving Pvc Coated Galvanized
Brand: HBGB
Price: 1 USD

Wholesale 2.7mm Net Wire Gabion Stone Box Hexagonal Weaving Pvc Coated Galvanized from china suppliers

Brand Name : HBGB

Model Number : GB-003

Certification : ISO 9001

Place of Origin : China

MOQ : 100PCS

Price : negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000 pcs per day

Delivery Time : 10-25days

Packaging Details : compacted before packaging, in bundle

Product name : Gabion stone box

Material : wire Q195

Surface treatment : PVC Coated and galvanized

Wire diameter : 2.7 mm

Edge wire : 3.0-3.4mm

Tie wire : 2.0, 2.2 mm

Hole shape : hexagonal

Aperture : 6 x 8 cm, 8 x 10 cm

Box size : 2x1x0.5m, 2x1x1m, 3x1x0.5m, 4x1x1m

Usage : Flood Control Retaining Wall

Contact Now

2.7 Mm Net Wire Hexagonal Weaving Pvc Coated Galvanized Gabion Stone Box

Galvanized Gabion Box Introduction:

Gabion Box are multiple twisted hexagonally woven galvanized or PVC coated steel wire mesh compartmented baskets with a rectangular box shape. The compartments are of equal dimension and are formed by internal diaphragms. The compartment is filled with natural stone and the diaphragms assure minimum stone migration within the basket. Thus providing even distribution of the stone even in abnormal conditions, and adding strength to the container to help retain its rectangular shape during the filling operation.

Galvanized Gabion Box Structure:

Gabion box is consist of rectangular units, fabricated from a double-twisted hexagonal mesh, filled with stones. In order to reinforce the structure, its edges with a wire having a thicker diameter than the mesh wire. Gabion boxes be divided into cells by diaphragms at every 1 meters.

2.7mm Net Wire Gabion Stone Box Hexagonal Weaving Pvc Coated Galvanized

Galvanized Gabion Box Specifications:

Mesh(mm)	Wire Dia(mm)	Wire Dia(PVC Coated)Inner/outside(mm)	Strands
60x80	2.0-2.8	2.0/3.0-2.5/3.5	3
80x100	2.0-3.2	2.0/3.0-2.8/3.8	3
80x120	2.0-3.2	2.0/3.0-2.8/3.8	3
100x120	2.0-3.4	2.0/3.0-2.8/3.8	3
100x150	2.0-3.4	2.0/3.0-2.8/3.8	3
120x150	2.0-4.0	2.0/3.0-3.0/4.0	3

Length (m)	Width (m)	Height (m)	Diaphragm	Volume (m3)	Tolerance
2.0	1.0	0.3	1	0.6	L:+/-3% W:+/-5% H:+/-5%
3.0	1.0	0.3	2	0.9
4.0	1.0	0.3	3	1.2
2.0	1.0	0.5	1	1.0
3.0	1.0	0.5	2	1.5
4.0	1.0	0.5	3	2.0
1.0	1.0	0.5	0	0.5
1.0	1.0	1.0	0	1.0
2.0	1.0	1.0	1	2.0
3.0	1.0	1.0	2	3.0
4.0	1.0	1.0	3	4.0

Process of production:

2.7mm Net Wire Gabion Stone Box Hexagonal Weaving Pvc Coated Galvanized

Packing & loading pictures:

2.7mm Net Wire Gabion Stone Box Hexagonal Weaving Pvc Coated Galvanized
