4mm Welded Wire Mesh Panels Home Decorative Metal 3d Bending Curved

Name: 4mm Welded Wire Mesh Panels Home Decorative Metal 3d Bending Curved
Brand: HBGB
Price: 1 USD

Wholesale 4mm Welded Wire Mesh Panels Home Decorative Metal 3d Bending Curved from china suppliers

Brand Name : HBGB

Model Number : GB-008

Certification : ISO 9001

Place of Origin : China

MOQ : 100pcs

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 2000pcs per day

Delivery Time : 10-20days

Packaging Details : in bundle, by pallet, wooden case or customized

Product name : 3d curved fence panel

Raw material : galvanized iron wire or black iron wire

Finishing : PVC coated or hot dipped galvanized

Color : Any RAL series color (RAL 6005-Dark Green is most popular).

Wire diameter : 4mm,5mm,as your requirements

Hole size : 50*150mm

Height : 0.6-3m

Length : 2-3m

Usage : Garden Fence, Highway Fence

Feature : Easily Assembled, ECO FRIENDLY

Contact Now

Green Color Pvc Coated Curved Type Welded Wire Mesh Fencing Panels

Curved Welded Wire Mesh Fence Panels Details:

3D fence panels an economical version of the panel system, constructed from a Welded Wire Fence with longitudinal profiles that forms a rigid fence.Due to its simple structure ,easy installation and nice appearance,more and more customers regard this product as the preferred common protective fence.

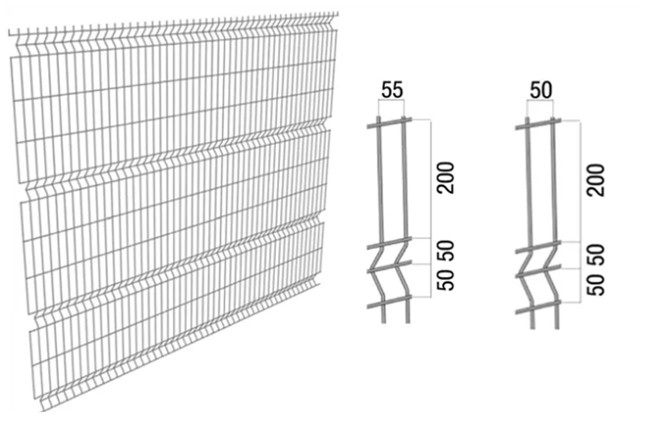

Drawing of 3d curved fence panel:

4mm Welded Wire Mesh Panels Home Decorative Metal 3d Bending Curved

Available Colors of Curved Welded Wire Mesh Fence Panels:

Any RAL series color (RAL 6005-Dark Green is most popular).

4mm Welded Wire Mesh Panels Home Decorative Metal 3d Bending Curved

Fence Post of Curved Welded Wire Mesh Panels:

The panels are secured laterally on the posts with specialized fixing made out of metal (security clips). The square posts (50x50mm, or 60X60mm) are covered with a plastic cap. Specifications can be customized.

Welded Wire Mesh Specification:

Mesh Panel	Panel Height	600-3000mm
	Panel Width	2000-3000mm
	Wire Thickness	3-6mm
	Mesh	50x150mm,50×200mm,50×100mm,55×200mm,55×100mm
	Material	Q195
	Surface Treatment	Pre galvanized or hot dipped galvanized,powder coating or PVC coated after welding.
	Folds NO.	2,3,4(according to the height)
Fence Posts	Peach Posts	Profile:50×70mm,60×90mm,70×100mm Wall Thickness:1.2mm,1.5mm
	Square Tube	Profile:50×50mm,60×60mm Wall Thickness 1.5mm-4.0mm
	Rectangle Tube	Profile:60×40mm,80×40mm Wall Thickness:1.5mm-4.0mm
	Round Pipe	Profile:φ48,φ60,φ75 Wall Thickness:1.5-3.2mm
	Post Height	According to fence panel height(Normal 0.65-4m)
	Finish	Galvanized and Electrostatic polyester powder coated
	Accessories	post cap, clamps, bolts and nuts,etc.
Fence Color	Dark green(RAL6005),other RAL colors,also available as requests,uv available.

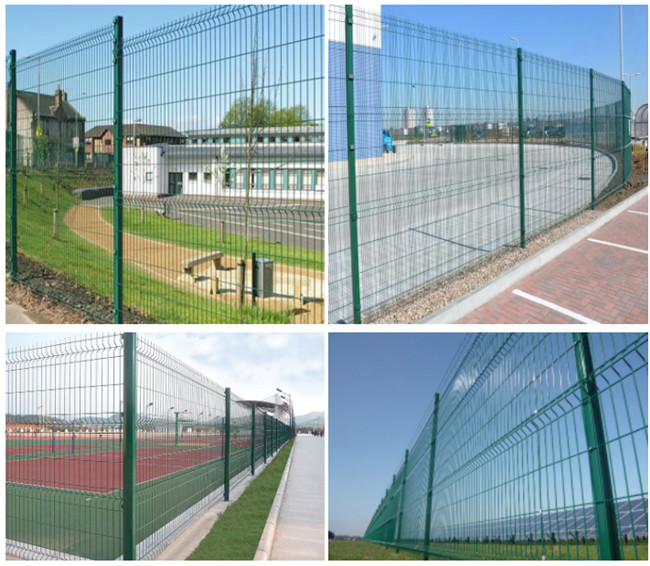

Application of curved welded wire mesh fence:

The welded mesh fencing can be used for gardens, factory, road , highway, public buildings , parks, government buildings, ball court, industry & commercial sector.
