4.0x1.0x0.5M 3m Length Welded Gabion Mesh 5 Mm Dia Wall Garden Edging

Hebei Gabion Hardware and Mesh Co.,ltd
Contact Now

4.0x1.0x0.5M 3m Length Welded Gabion Mesh 5 Mm Dia Wall Garden Edging

  • 1
  • 2

Brand Name : HBGB

Model Number : GB-001

Certification : ISO 9001

Place of Origin : China

MOQ : 50sets

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000 sets per day

Delivery Time : 10-20 days

Packaging Details : bulk or in bundle, or on pallet

Product name : welded gabion mesh

Material : iron wire

Surface treatment : heavy zinc coated

Hole shape : rectangle

wire diameter : 5 mm

aperture : 50x100 mm

length : 1M,2M,3M,4M

Application : Flood Control Retaining Wall

Packing : bundle then on pallet

Features : Strong Corrosion Resisting

Contact Now

anping factory supplying heavy duty galvanized welded gabion mesh

welded gabion mesh details:

Welded gabion basket is made of high quality materials with outstanding corrosion resistant coating, which make the welded gabion cage a more stable and longer service life. The wires are welded into sheets and then assembled into cages. The welded gabion cage has a wider range application than the woven gabion cage in our daily life.

welded gabion mesh cage dimensions:

Manufacture Stone Galvanized Gabion Welded Fence Mesh Box For Wall

Nominal Box sizes (m) Mesh size (mm) No. of diaphragms (no.) Capacity per box (m3)
1.0x1.0x0.5

50x50

75x75

50x100

100x100

0 0.50
1.0x1.0x1.0 0 1.00
1.5x1.0x0.5 0 0.75
1.5x1.0x1.0 0 1.50
2.0x1.0x0.5 1 1.00
2.0x1.0x1.0 1 2.00
3.0x1.0x0.5 2 1.50
3.0x1.0x1.0 2 3.00
4.0x1.0x0.5 3 2.00
4.0x1.0x1.0 3 4.00

welded gabion mesh lnstallation:

1, Ends, diaphragms, front and back panels are placed upright on the bottom section of wire mesh.
2, Secure panels by screwing spiral binders through the mesh openings in adjacent panels.
3, Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing, and crimped over the line and cross wires on the front and side faces. None are needed in interior cells.
4, Gabion box filled with graded stone by hand or with a shovel.
5, After filling, close the lid and secure with spiral binders at the diaphragms, ends, front and back.
6, When stacking tiers of the welded gabion box, the lid of the lower tier may serve as the base of the upper tier. Secure with spiral binders and add pre-formed stiffeners to exterior cells before filling with graded stones

Welded gabion mesh high performance (galvanizng after weldeding):

As a result we virtually eliminate destructive holes in the zinc coating that are created during welding. In addition, our galvanizing is the most pure - 99% pure zinc - Which you can be assured will provide your gabions with the utmost in corrosion protection.

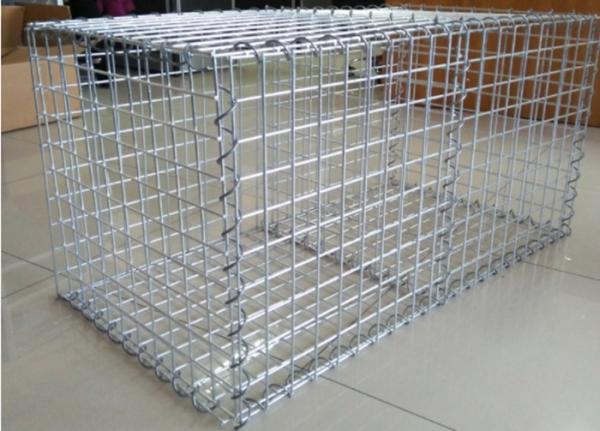

welded gabion mesh pictures:

4.0x1.0x0.5M 3m Length Welded Gabion Mesh 5 Mm Dia Wall Garden Edging

Appilcations:

4.0x1.0x0.5M 3m Length Welded Gabion Mesh 5 Mm Dia Wall Garden Edging
